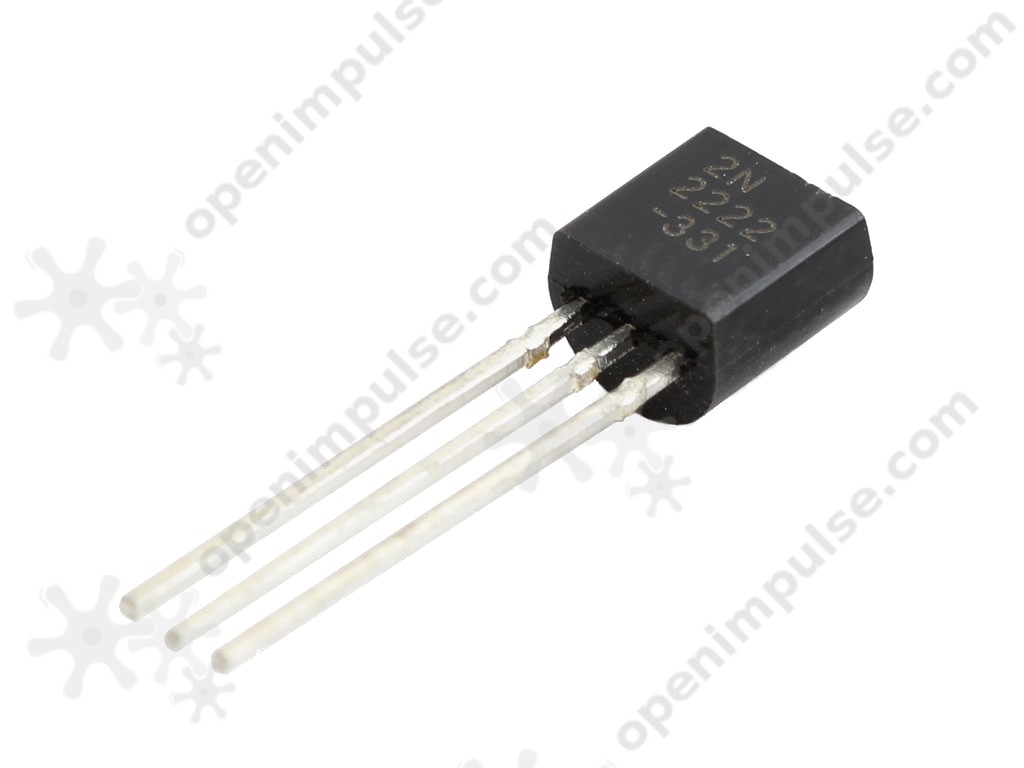

50pcs 2n2222 TO-92 NPN Transistor

50pcs 2n2222 TO-92 NPN Transistor
These transistors are electronic components ideal for switching circuits and can also be used as an amplifier.

SKU: CQY15104642067

Price: 0.99 $

Product in stock

SSL Certificate
Quantity
Loading Updating cart...

Overview

The transistor is a circuit element that can be used as an electrically operated switch. It is made of semiconductor materials, has three terminals and can interrupt or close the circuit between two terminals depending on the command applied to the control pin.

Use with Arduino

There are two common types of transistors: bipolar and field-effect.

                                  bipolar transistors

The picture shows the symbol bipolar transistor (left) and an illustration of a universal transistor (right). There are two types of transistors: NPN and PNP (depending on the type of semiconductor material). Its terminals are: B - Base C - Collector E - Emitor

                                      MOS transistors

The base will be used to control the transistor. Initially, this will not stream (between C and E). If the voltage base - emitter opening exceeds a threshold (about 0.65 V), it will absorb the current through the base and it will let through (almost) freely between C and E.
The image shows the symbols equivalent field effect transistor (FET - Field Effect Transistor). They work in the same way with one exception: they do not absorb energy when they are constantly open (as opposed to bipolar transistor). Switches faster, but their disadvantage is the fact that the command requires a higher voltage applied to the gate (Gate) - 1.8 ~ 10V
